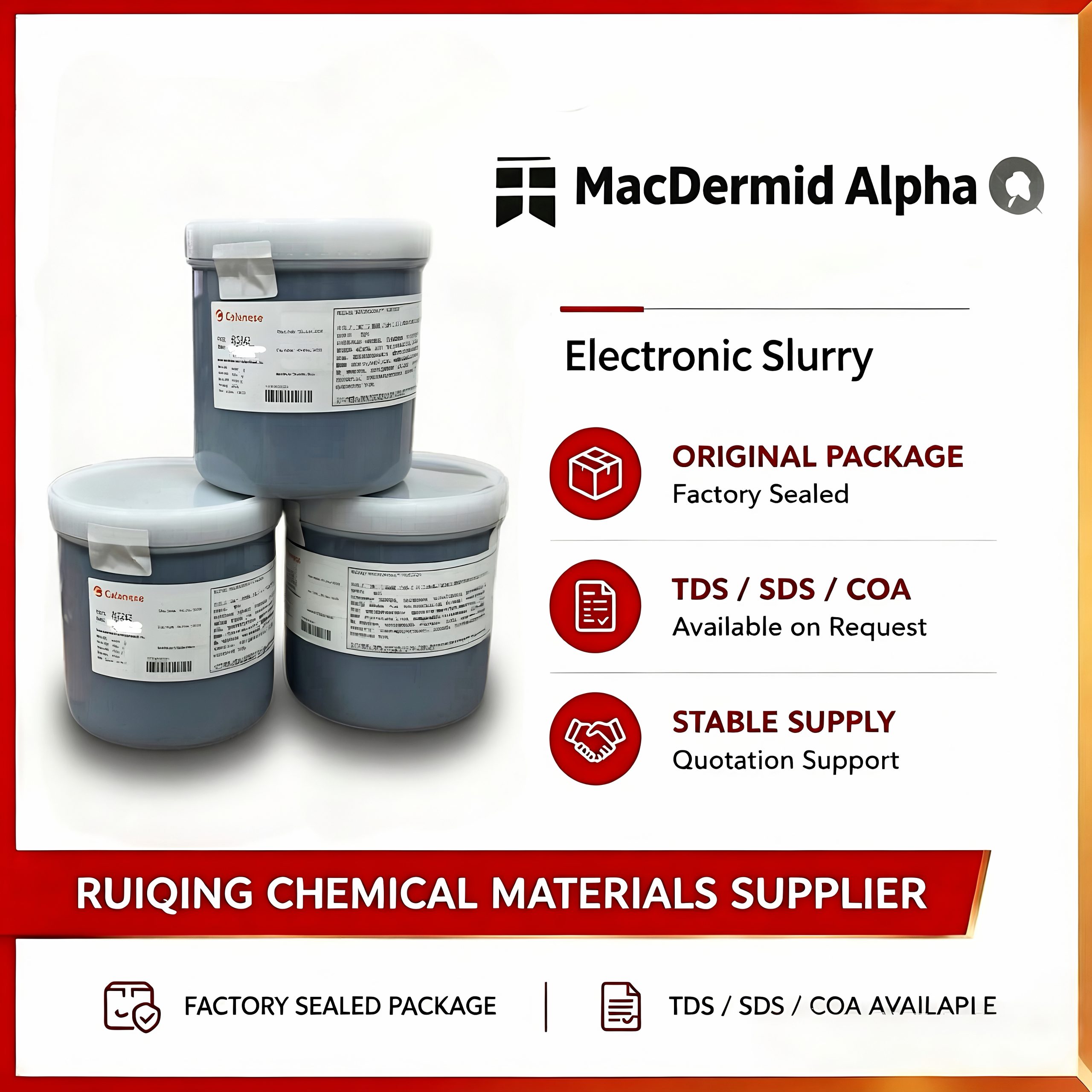

Micromax 4922N Air-Dry Silver Conductor, Tantalum Capacitor
Type: Air-Dry Silver Conductor
Application: Tantalum Capacitor / PCB Repair
Cure: RT or 60-100°C
Shelf Life: 6 months
MacDermid Alpha Micromax 4922N is a high metal content, high viscosity air-dry silver conductor designed for tantalum capacitor anode metallization and circuit board repair. Featuring higher conductivity than 4817N, suitable for brush, stylus, or machine banding applications per TDS specifications.
Micromax 4922N is a high metal content, high viscosity air-dry silver conductor composition designed for general purpose conductive applications requiring higher conductivity. This product is the high-solids version of Micromax 4817N, offering superior electrical performance for brush, stylus, or machine banding applications. The composition is widely used in tantalum capacitor anode metallization, circuit board repair, and electroplating base applications. It exhibits a moderately fast drying rate with good adhesion to most substrates.
The paste cures in 16-20 hours at room temperature (25°C) or in 1 hour at 60-100°C, providing flexibility for various production processes. For brush, stylus or machine banding applications, Micromax 4922N delivers higher conductivity compared to 4817N. The composition can be thinned with butyl acetate or Micromax 8459 to achieve optimum application properties. Available in standard packaging with 6-month shelf life per TDS specifications.
Genuine MacDermid Alpha Micromax Imported Stock & Technical Support
We maintain stable inventory of authentic MacDermid Alpha Micromax 4922N air-dry silver conductor. Factory-original TDS and batch-specific COA can be provided upon request for your tantalum capacitor and PCB repair projects.
Request Sample, TDS & Quotation
Complete TDS, COA, and regulatory documentation available
Key Features of MacDermid Alpha Micromax 4922N
- High metal content air-dry silver conductor — high-solids version of 4817N with higher conductivity per TDS specifications
- Higher conductivity than 4817N — superior electrical performance for demanding applications per TDS specifications
- Brush, stylus and machine banding compatible — optimized for manual and automated application methods per TDS specifications
- Tantalum capacitor anode metallization — widely used for capacitor manufacturing per TDS specifications
- Circuit board repair — excellent for PCB repair and modification applications per TDS specifications
- Flexible curing options — 16-20 hours at RT or 1 hour at 60-100°C per TDS specifications
- Versatile substrate compatibility — bonds to paper, plastic, rubber, wood, and ceramic per TDS specifications
- 6-month shelf life — stable storage in unopened containers per TDS specifications
Primary Applications
- Tantalum capacitors — anode metallization for tantalum capacitor manufacturing per TDS specifications
- Circuit board repair — conductive repair and modification of printed circuit boards
- Electroplating base — conductive base layer for electroforming and electroplating per TDS specifications
- Static shielding — conductive coatings for EMI/RFI shielding applications
- Printed electronics — conductive patterns on various substrates
Full Technical Specifications
| Property | Typical Value | TDS Reference |
| Product Type | Air-dry silver conductor | TDS: Conductive Silver Compositions |
| Application | Tantalum capacitors, PCB repair | TDS: Tantalum capacitor |
| Packaging Specification | Standard container | — |
| Metal Content | High | TDS: high metal content |
| Viscosity | High viscosity | TDS: high viscosity |
| Conductivity | Higher than 4817N | TDS: higher conductivity |
| Application Methods | Brush, stylus, machine banding | TDS: brush, stylus, machine banding |
| Cure Temperature (RT) | Room temperature (25°C) | TDS: 25°C |
| Cure Time (RT) | 16-20 hours | TDS: 16-20 hours |
| Cure Temperature (Oven) | 60-100°C | TDS: 60-100°C |
| Cure Time (Oven) | 1 hour (at 100°C) | TDS: 1 hour at 100°C |
| Recommended Film Thickness | 12-20 μm | TDS: 12-20 μm |
| Substrate Compatibility | Paper, plastic, rubber, cloth, wood, ceramic | TDS: paper, plastic, rubber, cloth, wood |
| Thinner | Micromax 8459 or Butyl Acetate | TDS: 8459 or butyl acetate |
| Shelf Life | 6 months | TDS: 6 months |
| Storage Temperature | 5-30°C | TDS: 5-30°C |
Note: All listed values are typical and may vary by batch. Independent qualification testing is required prior to production use.
Recommended Processing Conditions
| Parameter | Recommended Value | TDS Reference |
| Mixing Prior to Use | Stir to redisperse solids | TDS: stirring required |
| Application Methods | Brush, stylus, machine banding | TDS: brush, stylus, machine banding |
| Cure Temperature (RT) | Room temperature (25°C) | TDS: 25°C |
| Cure Time (RT) | 16-20 hours | TDS: 16-20 hours |
| Cure Temperature (Oven) | 60-100°C | TDS: 60-100°C |
| Cure Time (Oven) | 1 hour (at 100°C) | TDS: 1 hour at 100°C |
| Recommended Film Thickness | 12-20 μm | TDS: 12-20 μm |
| Substrate | Paper, plastic, rubber, cloth, wood, ceramic | TDS: paper, plastic, rubber, cloth, wood |
| Thinner | Micromax 8459 or Butyl Acetate | TDS: 8459 or butyl acetate |
Handling and Storage Recommendations
| Storage Rules | Store in tightly sealed containers in clean, stable environment at 5-30°C. | TDS: 5-30°C |
| Shelf Life | 6 months in unopened containers from date of shipment. | TDS: 6 months |
| Pre-use Preparation | Thoroughly mix prior to use. Some settling of solids may occur during storage. | TDS: stirring required |
| Thinning | Not normally required; use Micromax 8459 or butyl acetate thinner sparingly for evaporative losses. | TDS: 8459 or butyl acetate |
Official Technical Documentation
| Document Type | Document Introduction | Document Request |
| TDS | MacDermid Alpha Micromax 4922N original factory technical data sheet | Request TDS |
| COA | Batch-specific certificate of analysis | Request COA |
| SDS | Safety Data Sheet for handling and storage | Request SDS |
Frequently Asked Questions
What is Micromax 4922N?
Micromax 4922N is a high metal content, high viscosity air-dry silver conductor for tantalum capacitor anode metallization and PCB repair, with higher conductivity than 4817N per TDS specifications.
What is the difference between 4922N and 4817N?
4922N is the high metal content, high viscosity version of 4817N, offering higher conductivity and suitable for brush, stylus or machine banding applications per TDS specifications.
What is the curing condition for Micromax 4922N?
16-20 hours at room temperature (25°C) or 1 hour at 100°C per TDS specifications.
What substrates are compatible with Micromax 4922N?
Paper, plastic, rubber, cloth, wood, and ceramic substrates per TDS specifications.
What is the shelf life of Micromax 4922N?
6 months in unopened containers from date of shipment per TDS specifications.
What thinner is recommended for Micromax 4922N?
Micromax 8459 or butyl acetate per TDS specifications.
What packaging options are available for Micromax 4922N?
Standard packaging containers are available. Contact our sales team for specific requirements.
Get MacDermid Alpha Micromax 4922N Bulk Pricing and Technical Support
We supply authentic MacDermid Alpha Micromax 4922N air-dry silver conductor for tantalum capacitor and PCB repair applications. Contact our team for bulk quotations, sample availability, technical documentation, and application support.
Inquire Bulk Price & Technical Support
Disclaimer: All technical data on this page are for general guidance only and are not product specifications. Buyers must carry out independent trials and verify suitability before bulk ordering. Actual values may vary between production lots.
