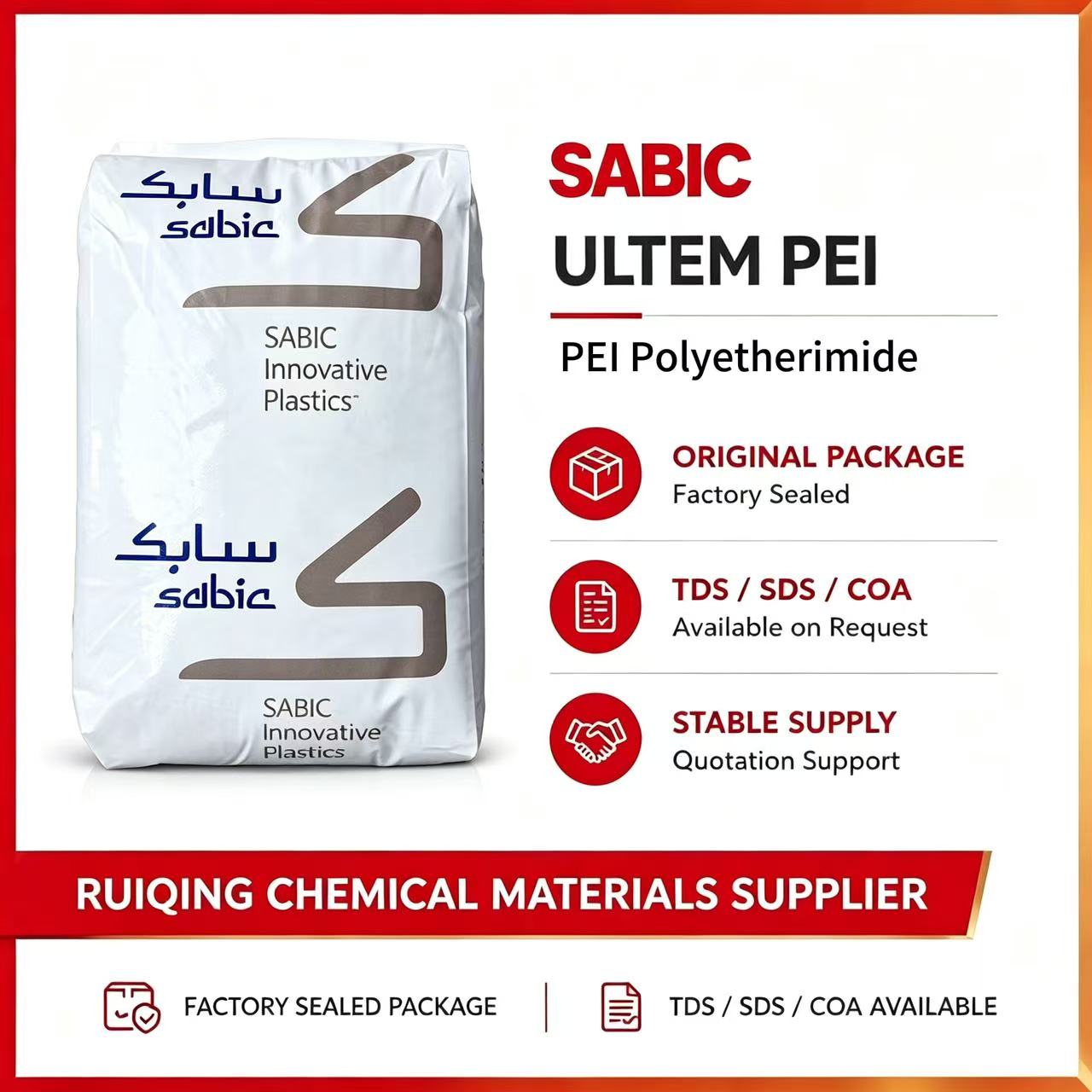

ULTEM NP2300 – 30% Glass Fiber Reinforced PEI Resin by SABIC

ULTEM Resin NP2300 is a standard flow, 30% glass fiber reinforced polyetherimide (PEI) resin manufactured by SABIC. As an authorized distributor and trader, we supply genuine SABIC materials with full traceability. For more product options and company information, please visit our website at https://szrqchem.com/.

ULTEM NP2300 is a high-performance, glass fiber reinforced grade that delivers exceptional mechanical, thermal, and electrical properties. The 30% glass fiber reinforcement provides significantly increased stiffness, strength, and dimensional stability compared to unreinforced grades. The material is intrinsically flame retardant without the use of halogenated FR modifiers, offering UL94 V-0 and 5VA ratings and meeting FAR25.853 performance requirements.

This non-chlorinated, non-brominated flame-retardant grade is RoHS compliant and certified per UL746G for non-fluorine and non-PFAS containing materials. With a high glass transition temperature of 217°C, NP2300 offers excellent dimensional stability, strength, stiffness, and creep resistance up to elevated temperatures. ISCC+ certified renewable bio-based solutions are available for this grade via differentiated color nomenclature.

Key attributes include:

• 30% Glass Fiber Reinforcement – Provides high stiffness, strength, and dimensional stability; excellent creep resistance up to high temperatures

• Standard Flow – Designed for injection molding with consistent flow behavior

• Intrinsic Flame Retardancy – UL94 V-0 (1.5mm, all colors) and 5VA ratings without halogenated FR modifiers

• Aerospace FST Compliance – Meets FAR25.853 performance requirements

• PFAS-Free – Certified per UL746G for non-fluorine and non-PFAS containing materials

• High Heat Resistance – Glass transition temperature (Tg) of 217°C; RTI (Relative Thermal Index) up to 180°C

• High Stiffness & Strength – Exceptional mechanical properties with predictable stiffness and strength up to 200°C

• Excellent Dimensional Stability – One of the most dimensionally stable thermoplastics; high tolerance capability in filled grades

• Good Chemical Resistance – Retains strength and resists stress cracking when exposed to automotive and aircraft fluids, aliphatic hydrocarbons, alcohols, acids, and weak aqueous solutions

• Low Smoke & Toxicity – Limiting Oxygen Index (LOI) of 47%; extremely low smoke per NBS Smoke Evolution test; combustion products no more toxic than wood

• Excellent Processability – Suitable for injection molding, extrusion, thermoforming, and blow molding; capable of long flow lengths down to 0.2 mm

• RoHS Compliant – Meets environmental compliance standards

• Sustainable Option – ISCC+ certified renewable bio-based solutions available

• Versatile Processing – Suitable for injection molding, extrusion, compression molding, and thermoforming

Key Features of ULTEM NP2300

• 30% Glass Fiber Reinforced – Provides significantly increased stiffness, strength, and dimensional stability compared to unreinforced grades; excellent creep resistance up to high temperatures

• Standard Flow – Designed for injection molding with consistent flow behavior; MFR of 7.8-8.0 g/10min (337°C, 6.6kg)

• Intrinsic Flame Retardancy – UL94 V-0 (1.5mm, all colors) and 5VA ratings without halogenated FR modifiers; non-chlorinated, non-brominated flame-retardant grade

• Aerospace FST Compliance – Meets FAR25.853 performance requirements for aircraft interior applications; low smoke and toxicity

• PFAS-Free – Certified per UL746G – an outline of investigation for non-fluorine and non-PFAS containing materials

• High Heat Resistance – Glass transition temperature of 217°C; RTI (Relative Thermal Index) up to 180°C; provides long-term heat resistance and stability of physical and mechanical properties at elevated temperatures

• High Stiffness & Strength – Exceptional mechanical properties with predictable stiffness and strength up to 200°C; high strength and rigidity retained at elevated temperatures

• Excellent Dimensional Stability – One of the most dimensionally stable thermoplastics with a broad temperature range of predictability; high tolerance capability in filled grades

• Good Chemical Resistance – Retains strength and resists stress cracking when exposed to automotive and aircraft fluids, aliphatic hydrocarbons, alcohols, acids, and weak aqueous solutions

• Low Smoke & Toxicity – Limiting Oxygen Index (LOI) of 47%; extremely low smoke per NBS Smoke Evolution test; combustion products no more toxic than wood

• Good Processability – Can be extruded, thermoformed, blow molded, and injection molded; capable of long flow lengths down to 0.2 mm using conventional injection molding equipment

• ECO Conforming – Meets environmental compliance standards

• Sustainable Option – ISCC+ certified renewable bio-based solutions available via differentiated color nomenclature; mass balance approach replaces 25.5 kg of fossil feedstock with bio-based materials per 100 kg of ULTEM resin

• RoHS Compliant – Supports environmentally responsible material selection

• Versatile Processing – Suitable for injection molding, extrusion, compression molding, and thermoforming

Typical Applications for ULTEM NP2300

Typical Properties

Important Notes on Typical Data:

• Values listed are typical and sourced from SABIC official data sheets. They do not constitute binding product specification.

• Batch-to-batch deviations may exist. For critical applications, validate performance with batch-specific COA certificate.

• Final performance depends on processing conditions, mold design, and part geometry.

• SABIC official TDS shall serve as definitive technical reference. Request the latest official TDS from our sales team.

Processing Guidelines (Injection Molding)

Critical Processing Warnings:

• Drying: ULTEM NP2300 is hygroscopic and must be dried to <0.02% moisture before processing. Dry at 150°C for 4-6 hours.

• Standard Flow: This grade offers standard flow characteristics for consistent injection molding processing.

• Melt Temperature: Avoid excessive residence times to prevent thermal degradation.

• Mold Temperature: Higher mold temperatures improve flow and reduce residual stress.

• Processing Methods: Suitable for injection molding, extrusion, compression molding, and thermoforming. Capable of long flow lengths down to 0.2 mm using conventional injection molding equipment.

• Gate Design: Use large gates and runners to minimize flow resistance and reduce molded-in stress.

• Regrind: Regrind can be used up to 20-25% with virgin material, provided it is clean and properly dried.

• PFAS-Free: This product is certified per UL746G for non-fluorine and non-PFAS containing materials.

Related Products

• Explore PEI / Polyetherimide – Browse all ULTEM PEI resin options

• Explore Engineering Plastics – Browse all engineering plastic materials

• About Our Company – Learn more about our supply capabilities and quality assurance

Technical Documents

Request any document above by:

• Email: ruiqingchem@gmail.com

• Online form: Our contact page

We reply within one working business day. Please clearly state product (ULTEM NP2300) and document type you require.

FAQ

Q1: What is ULTEM NP2300?
A: ULTEM NP2300 is a 30% glass fiber reinforced polyetherimide (PEI) resin manufactured by SABIC. It is a standard flow, intrinsically flame retardant grade that offers high heat resistance (Tg 217°C), excellent dimensional stability, and high strength and stiffness.

Q2: Is ULTEM NP2300 flame retardant?
A: Yes. ULTEM NP2300 is intrinsically flame retardant without halogenated FR modifiers, with UL94 V-0 (1.5mm, all colors) and 5VA ratings, and meets FAR25.853 performance requirements.

Q3: Is ULTEM NP2300 PFAS-free?
A: Yes. ULTEM NP2300 is certified per UL746G for non-fluorine and non-PFAS containing materials. It is a non-chlorinated, non-brominated flame retardant grade.

Q4: Is ULTEM NP2300 RoHS compliant?
A: Yes. ULTEM NP2300 is RoHS compliant.

Q5: What is the glass transition temperature of ULTEM NP2300?
A: The glass transition temperature (Tg) is 217°C.

Q6: What is the glass fiber content of ULTEM NP2300?
A: ULTEM NP2300 contains 30% glass fiber reinforcement.

Q7: What is the RTI of ULTEM NP2300?
A: The Relative Thermal Index (RTI) is up to 180°C.

Q8: What is the limiting oxygen index of ULTEM NP2300?
A: The limiting oxygen index (LOI) is 47%.

Q9: What industries use ULTEM NP2300?
A: Key industries include aerospace (aircraft interiors, engine components), automotive (under-hood components, battery insulation), electrical & electronics (5G connectors, ECU housings), medical (surgical instruments, sterilization containers), and industrial/photovoltaic applications.

Q10: What processing methods can be used for ULTEM NP2300?
A: ULTEM NP2300 is suitable for injection molding, extrusion, compression molding, and thermoforming. It can achieve long flow lengths down to 0.2 mm using conventional equipment.

Q11: Is there a sustainable/bio-based version of ULTEM NP2300?
A: Yes. ISCC+ certified renewable bio-based solutions are available for this grade via differentiated color nomenclature. SABIC replaces 25.5 kg of fossil feedstock with bio-based materials per 100 kg of ULTEM resin.

Q12: Can ULTEM NP2300 be custom colored?
A: Yes. ULTEM NP2300 is opaque and all colors are customizable.

Q13: What is the heat deflection temperature of ULTEM NP2300?
A: Heat deflection temperature is approximately 190-200°C at 1.82 MPa.

Q14: What is the Vicat softening temperature of ULTEM NP2300?
A: The Vicat softening temperature is approximately 227°C.

Q15: What is the lead time for orders?
A: Regular orders ship within 7-10 working days after payment confirmation. Large-volume or urgent orders can be negotiated separately.

CTA (Call to Action)

Ready to order ULTEM NP2300?

To get a precise quotation and professional technical support, please share:

• Required quantity (kg)

• Destination port or delivery address

• Target application (aerospace, automotive, electrical, medical, industrial, etc.)

• Processing method (injection molding, extrusion, etc.)

• Color requirement (custom colors available)

• Bio-based preference (standard or ISCC+ certified renewable grade)

• Document requirement (TDS, SDS, UL, FAR 25.853 compliance, RoHS, UL746G, COA, etc.)

Sample Policy:

• Samples are for laboratory validation tests only, not for production use.

• Buyer bears international sample-shipping freight.

• If bulk-product performance deviates from sample reference, SABIC official TDS serves as the authoritative benchmark.

Take action now:

• 📧 Email Us – ruiqingchem@gmail.com

• 📝 Send Inquiry – Use our quick inquiry form

• 💬 Live Chat – Click the bottom-right chat widget to speak directly with our team

After-Sales Support

Disclaimer

DISCLAIMER: All technical data is referenced from original SABIC typical values for ULTEM NP2300. Our company acts as authorized distributor/trader rather than original manufacturer. Final performance depends on processing conditions, mold design, and part geometry. Buyers shall independently validate product suitability for individual applications. Our firm bears no liability for product failure caused by improper processing or improper usage. Always reference the latest SABIC official TDS of ULTEM NP2300 as the definitive specification.
