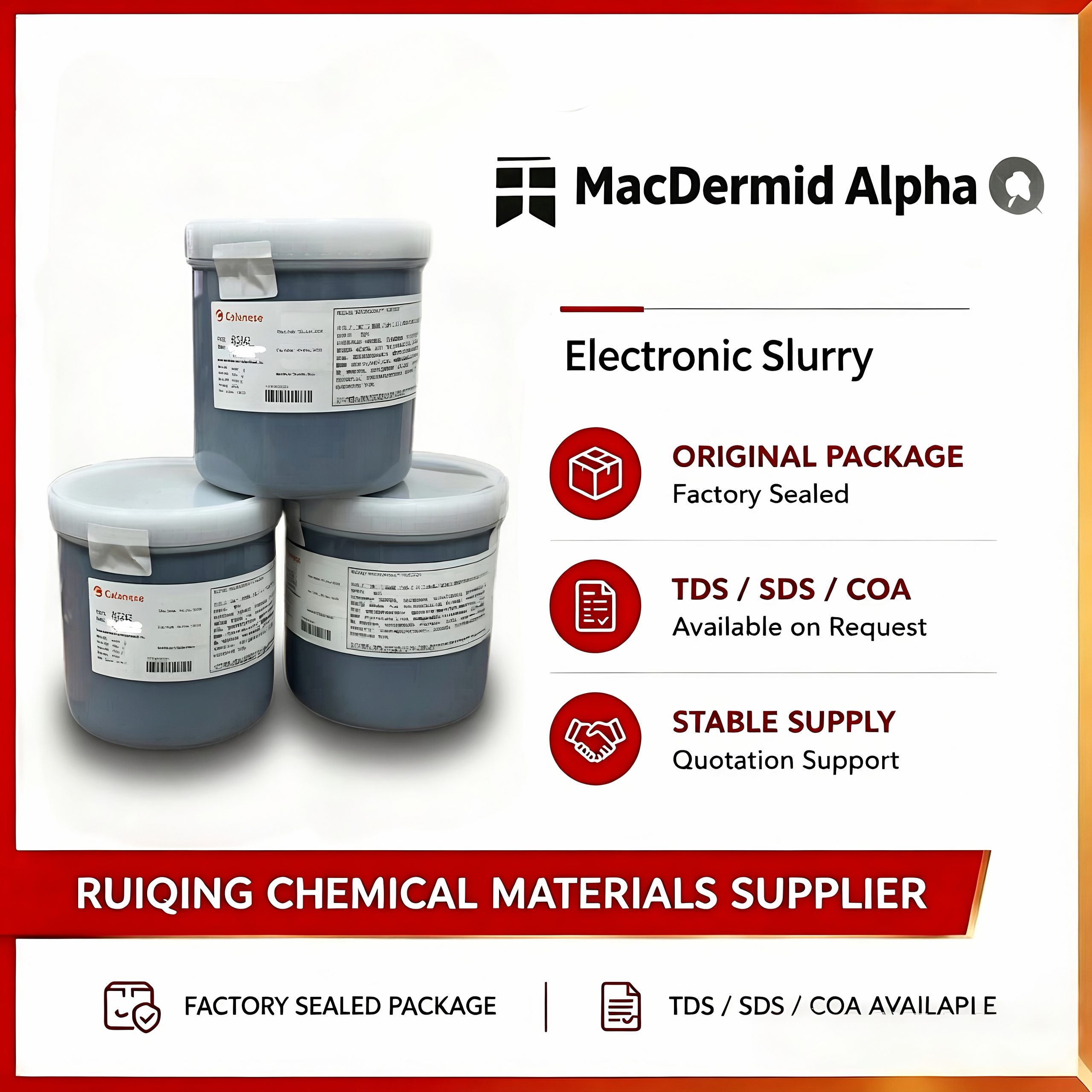

Micromax 00L2B Low Resistivity Blendable Resistor Paste
Type: Chip Resistor Paste
Pack: 100G / 1000G
Viscosity: 80-180 Pa.s
Film Thickness: 18-22 μm
Firing: 850°C / 30 min
Shelf Life: 6 months
Micromax 00L2B delivers high power at low thickness with excellent blendability for low resistivity applications — engineered for chip resistor production with 850°C fast firing.
Micromax 00L2B is a low resistivity blendable resistor paste specifically developed for chip resistor applications requiring efficient power handling at reduced film thickness. This grade delivers high power performance even at low thickness with excellent blendability for low resistivity designs, enabling flexible resistance tuning across a broad range. The material is optimized for high productivity manufacturing with consistent quality.
This resistor paste is optimized for screen printing and supports co-firing with high silver terminations at 850°C peak temperature. The cadmium-free formulation meets international environmental standards. Standard packaging options are 100G and 1000G.
Genuine Micromax Imported Stock and Technical Support
We maintain stable inventory of authentic Micromax 00L2B low resistivity blendable resistor paste. Factory-original TDS and batch-specific COA can be provided upon request.
Request Sample, TDS & Quotation
Complete TDS, COA, and regulatory documentation available
Core Advantages of Micromax 00L2B
- High power at low thickness — efficient power handling with reduced material consumption
- Excellent blendability — broad resistance tuning for low resistivity applications
- High productivity — designed for high-volume manufacturing with consistent quality
- Fast firing profile — 850°C peak with 30-minute total cycle for high throughput
- Multiple termination compatible — validated for Ag/Pd, gold, and silver-bearing conductors
- Cadmium free — meets global environmental compliance standards
Main Applications
- Chip Resistors — low resistivity chip resistor production
- Low Resistivity Applications — blendable low resistance chip resistor designs
- High Power Low Thickness Designs — power-efficient resistor components
- Surface Mount Devices — SMD resistor components for consumer and industrial electronics
Full Technical Parameters
| Property | Typical Value | Test / Reference |
| Product Type | Thick film chip resistor paste | — |
| Application | Chip resistor manufacturing | — |
| Packaging Specification | 100G, 1000G | Standard packing |
| Viscosity (Brookfield HBT 10 rpm) | 80-180 Pa.s | SC4-14/6R, 25°C |
| Recommended Film Thickness | 18-22 μm | Dried thickness |
| Drying Temperature | 150°C | 10 minutes |
| Firing Peak Temperature | 850°C | 10 min at peak, 30 min total |
| High Power Low Thickness | Designed for high power at low thickness | — |
| Blendability | Excellent for low resistivity applications | — |
| Termination Compatibility | Micromax 5426/5421E Ag/Pd, gold and silver-bearing conductors | — |
| Substrate Compatibility | 96% alumina | — |
| Environmental Compliance | Cadmium free | — |
| Shelf Life | 6 months in unopened containers | — |
| Storage Temperature | 5-30°C | — |
Note: All listed values are typical and may vary by batch. Independent qualification testing is required prior to production use.
Recommended Processing Conditions
| Parameter | Recommended Value |
| Mixing Prior to Use | Slow gentle hand-stirring, 1-2 minutes |
| Optimal Printing Temperature | 20-23°C |
| Leveling | Allow to level at room temperature |
| Drying Temperature | 150°C |
| Drying Time | 10 minutes |
| Dried Film Thickness | 18-22 μm |
| Firing Peak Temperature | 850°C |
| Total Firing Cycle | 30 minutes (10 min at peak) |
| Substrate | 96% alumina |
Handling and Storage Recommendations
| Storage Rules | Store in tightly sealed containers in clean, stable environment at 5-30°C. |
| Shelf Life | 6 months in unopened containers from date of shipment. |
| Pre-use Preparation | Thoroughly mix prior to use. Some settling may occur. |
| Thinning | Not normally required; use Micromax 8250(T) thinner sparingly for evaporative losses. |
Official Technical Documentation
| Document Type | Document Introduction | Document Request |
| TDS | Micromax 00L2B original factory technical data sheet | Request TDS |
| COA | Batch-specific certificate of analysis | Request COA |
| SDS | Safety Data Sheet for handling and storage | Request SDS |
Frequently Asked Questions
What is Micromax 00L2B?
Micromax 00L2B is a low resistivity blendable resistor paste designed for chip resistor applications. It delivers high power at low thickness with excellent blendability for low resistivity designs and high productivity manufacturing.
What is the viscosity of Micromax 00L2B?
Micromax 00L2B exhibits a viscosity between 80 and 180 Pa.s when measured with Brookfield HBT at 10 rpm, SC4-14/6R spindle, 25°C.
What is the recommended processing profile for Micromax 00L2B?
Recommended processing: dry at 150°C for 10 minutes, then fire at 850°C peak for 10 minutes within a 30-minute total cycle.
What is the recommended film thickness for Micromax 00L2B?
Micromax 00L2B is optimized for 18-22 μm dried film thickness.
What terminations are compatible with Micromax 00L2B?
Micromax 00L2B is compatible with high silver terminations including Micromax 5426/5421E Ag/Pd, as well as other gold and silver-bearing conductors.
Is Micromax 00L2B environmentally compliant?
Yes. Micromax 00L2B is cadmium free, meeting global environmental compliance standards.
What packaging sizes are available for Micromax 00L2B?
Micromax 00L2B is supplied in 100G and 1000G containers. For larger volume requirements, please contact our sales team.
