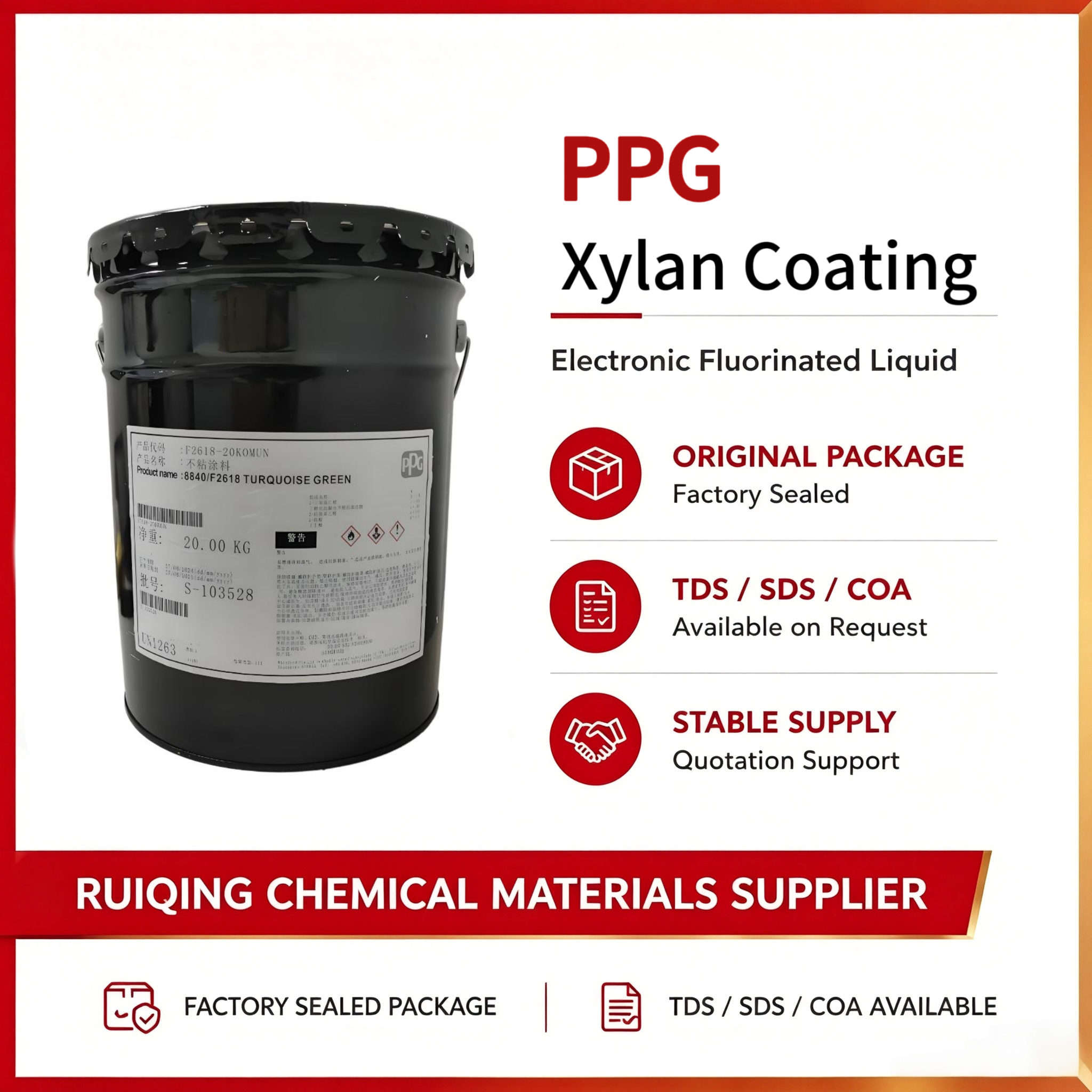

Xylan 8870 is a solvent-based, FEP-based reinforced nonstick coating from Whitford Corporation (now PPG). As an authorized distributor and trader, we supply genuine materials with full traceability and direct access to official technical documentation.
Xylan 8870 is part of the Xylan 8800 Series of high-cure fluoropolymer coatings. It is closely related to Xylan 8840, sharing the same FEP-based formulation that provides exceptional nonstick and release properties. However, Xylan 8870 is specifically reinforced for improved abrasion resistance, making it the preferred choice for applications where wear resistance is a primary requirement.
Xylan 8870 offers excellent release properties, is stain, wear, abrasion, household chemical, and high-temperature resistant. Its unique “plastic alloy” structure, formed through composite material technology, delivers ultra-low friction (coefficient as low as 0.02), excellent wear resistance, and all-environment corrosion resistance. The coating is food-contact acceptable, making it suitable for applications requiring FDA compliance.
Typical applications include mould release in a range of industries, heat sealing bars, post or pre-formed cookware, domestic appliances, weld fixtures (to prevent weld spatter from sticking), and epoxy resin moulds.
Key Features of Xylan 8870 Coating
-
Reinforced FEP-Based Formulation – Uses FEP as the nonstick element, providing superior release properties; reinforced for improved abrasion resistance compared to Xylan 8840
-
Exceptional Release Properties – Provides excellent nonstick and mould release performance; epoxy resin moulds coated with Xylan 8870 have gone more than 100 production cycles with no sticking
-
Enhanced Abrasion Resistance – Specifically reinforced to withstand wear and mechanical stress in demanding applications
-
Ultra-Low Friction – Coefficient of friction as low as 0.02, reducing mechanical resistance and energy consumption
-
High-Temperature Resistance – High-cure, fluoropolymer-based release coating that withstands high temperatures
-
Stain, Wear, and Chemical Resistance – Resists household chemicals, staining, and wear
-
Food-Contact Acceptable – Suitable for applications requiring food safety compliance
-
Wide Temperature Range – Stable service from -195°C to +285°C (-385°F to +545°F)
-
Flexible Curing – Supports curing from ambient temperature to 425°C (800°F)
-
Excellent Substrate Adhesion – Adheres well to metals, plastics, ceramics, and other substrates
-
Solvent-Based Formulation – Provides excellent wetting, leveling, and adhesion to properly prepared substrates
-
Multiple Colour Options – Available in various colours for identification and traceability
Typical Applications for Xylan 8870 Coating
| Industry | Typical Components & Considerations |
|---|---|
| Mould Release | Epoxy resin moulds, polyurethane moulds, rubber moulds – over 100 production cycles with no sticking |
| Cookware & Appliances | Post or pre-formed cookware, domestic appliances – nonstick release; stain and household chemical resistance |
| Food Processing | Food processing equipment, moulds – food-contact acceptable release surfaces |
| Welding | Weld fixtures – prevents weld spatter from sticking |
| Heat Sealing | Heat sealing bars – release properties; high-temperature resistance |
| General Industrial | Components requiring reinforced nonstick and abrasion resistance |
Typical Properties of Xylan 8870 Coating
| Property | Typical Value | Test Method |
|---|---|---|
| Coating Type | Reinforced FEP-based nonstick coating | — |
| Product Form | Liquid – Solvent-based | — |
| Coefficient of Friction | As low as 0.02 | — |
| Maximum Service Temperature | 285°C (545°F) | — |
| Minimum Service Temperature | -195°C (-385°F) | — |
| Dry Film Thickness | 35 – 50 μm | — |
| Abrasion Resistance | Enhanced (reinforced vs Xylan 8840) | — |
| Nonstick Performance | Exceptional | — |
| Chemical Resistance | Excellent (stain, household chemical resistant) | — |
| Food Contact | Acceptable | — |
| Package Size | 20 kg pails | — |
| Shelf Life | 18 months | — |
Important Notes on Typical Data:
Values listed are typical and sourced from manufacturer data sheets. They do not constitute binding product specification.
Batch-to-batch deviations may exist. For critical applications, validate performance with batch-specific COA certificate.
Final performance depends on substrate preparation, application method, and curing conditions.
Manufacturer official TDS shall serve as definitive technical reference. Request the latest official TDS from our sales team.
Processing Guidelines for Xylan 8870 Coating
| Step | Process |
|---|---|
| Surface Preparation | Degrease (acetone or isopropanol) → grit-blast (Sa2.5, Ra 1.5–4.0 μm) → optional phosphate pretreatment for steel |
| Coating Preparation | Low-speed mechanical stirring; dilute with manufacturer-recommended solvent |
| Application | Spray (conventional or HVLP), dip, or dip-spin coating |
| Curing | High-temperature cure; supports curing from ambient temperature to 425°C (800°F) |
| Storage | Store in original, sealed containers in a cool, dry place away from direct sunlight. Shelf life: 18 months |
Critical Processing Warnings:
Surface Preparation: Proper surface preparation is critical for adhesion. Ensure surfaces are clean, dry, and properly roughened.
Reinforced Formulation: Xylan 8870 is reinforced for improved abrasion resistance compared to Xylan 8840. Select this grade when wear resistance is a primary requirement.
Food-Contact Compliance: For food-contact applications, ensure the coating meets applicable FDA requirements.
Curing: High-temperature cure required. Cure time depends on part mass and oven characteristics. Always verify with test pieces.
Storage: Store in original, sealed containers in a cool, dry place away from direct sunlight.
Related Products
Explore Xylan Industrial Coatings – Browse all Xylan coating options
About Our Company – Learn more about our supply capabilities and quality assurance
Technical Documents for Xylan 8870 Coating
| Document Type | Description & Source |
|---|---|
| Manufacturer Official TDS | Complete physical, thermal, and release properties of Xylan 8870 |
| Manufacturer Official SDS | GHS-compliant chemical safety documentation |
| Distributor Authorization Certificate | Proof of our authorized-distributor qualification, available upon request |
| COA (Certificate of Analysis) | Batch-specific quality certification |
| Food Contact Compliance Documentation | Food-contact compliance certificates (where applicable) |
Request any document above by:
Email: ruiqingchem@gmail.com
Online form: Our contact page
We reply within one working business day. Please clearly state product (Xylan 8870) and document type you require.
FAQ about Xylan 8870 Coating
Q1: What is Xylan 8870?
A: Xylan 8870 is a solvent-based, reinforced FEP-based nonstick coating from Whitford (PPG). It provides exceptional release properties and is reinforced for improved abrasion resistance compared to Xylan 8840. It is stain, wear, abrasion, household chemical, and high-temperature resistant.
Q2: How does Xylan 8870 differ from Xylan 8840?
A: Xylan 8870 is similar to Xylan 8840 but is specifically reinforced for improved abrasion resistance. Select Xylan 8870 when wear resistance and durability are primary requirements.
Q3: What is the coefficient of friction of Xylan 8870?
A: Xylan 8870 offers a coefficient of friction as low as 0.02, effectively reducing mechanical resistance and energy consumption.
Q4: What is the temperature range of Xylan 8870?
A: Xylan 8870 operates reliably from -195°C to +285°C (-385°F to +545°F).
Q5: What are the typical applications for Xylan 8870?
A: Typical applications include mould release (epoxy resin, polyurethane, rubber moulds), heat sealing bars, post or pre-formed cookware, domestic appliances, and weld fixtures to prevent weld spatter from sticking.
Q6: Is Xylan 8870 food-contact acceptable?
A: Yes, Xylan 8870 is food-contact acceptable, making it suitable for food processing and cookware applications.
Q7: What is the lead time for orders?
A: Regular orders ship within 7-10 working days after payment confirmation. Large-volume orders can be negotiated separately.
CTA (Call to Action)
Ready to order Xylan 8870?
To get a precise quotation and professional technical support, please share:
-
Required quantity (kg)
-
Destination port or delivery address
-
Target application (mould release, cookware, industrial components, etc.)
-
Substrate type
-
Document requirement (TDS, SDS, COA, food-contact docs, etc.)
Sample Policy:
-
Samples are for laboratory validation tests only, not for production use.
-
Buyer bears international sample-shipping freight.
-
If bulk-product performance deviates from sample reference, manufacturer official TDS serves as the authoritative benchmark.
Take action now:
-
📧 Email Us – ruiqingchem@gmail.com
-
📝 Send Inquiry – Use our quick inquiry form
-
💬 Live Chat – Click the bottom-right chat widget to speak directly with our team
After-Sales Support
| Service | Details |
|---|---|
| Quality Inspection Period | All quality-related claims must be submitted within 7 working days after delivery, supported by test data and photographic evidence. |
| Return / Exchange Policy | Confirmed product defects caused by our side trigger replacement or refund. Terms and conditions apply. |
| Logistics Damage | Report shipping damage directly to carrier immediately upon goods receipt. We assist with claim-document preparation. |
| Technical Support | Remote technical guidance available. On-site troubleshooting can be arranged upon special request. |
| Export Documentation | We supply commercial invoice, packing list, bill of lading, COA, and additional compliance certificates on request. |
Disclaimer
DISCLAIMER: All technical data is referenced from original manufacturer typical values for Xylan 8870. Our company acts as authorized distributor/trader rather than original manufacturer. Final performance depends on substrate preparation, application method, and curing conditions. Buyers shall independently validate product suitability for individual applications. Our firm bears no liability for coating failure caused by improper application or improper usage. Always reference the latest manufacturer official TDS of Xylan 8870 as the definitive specification.
