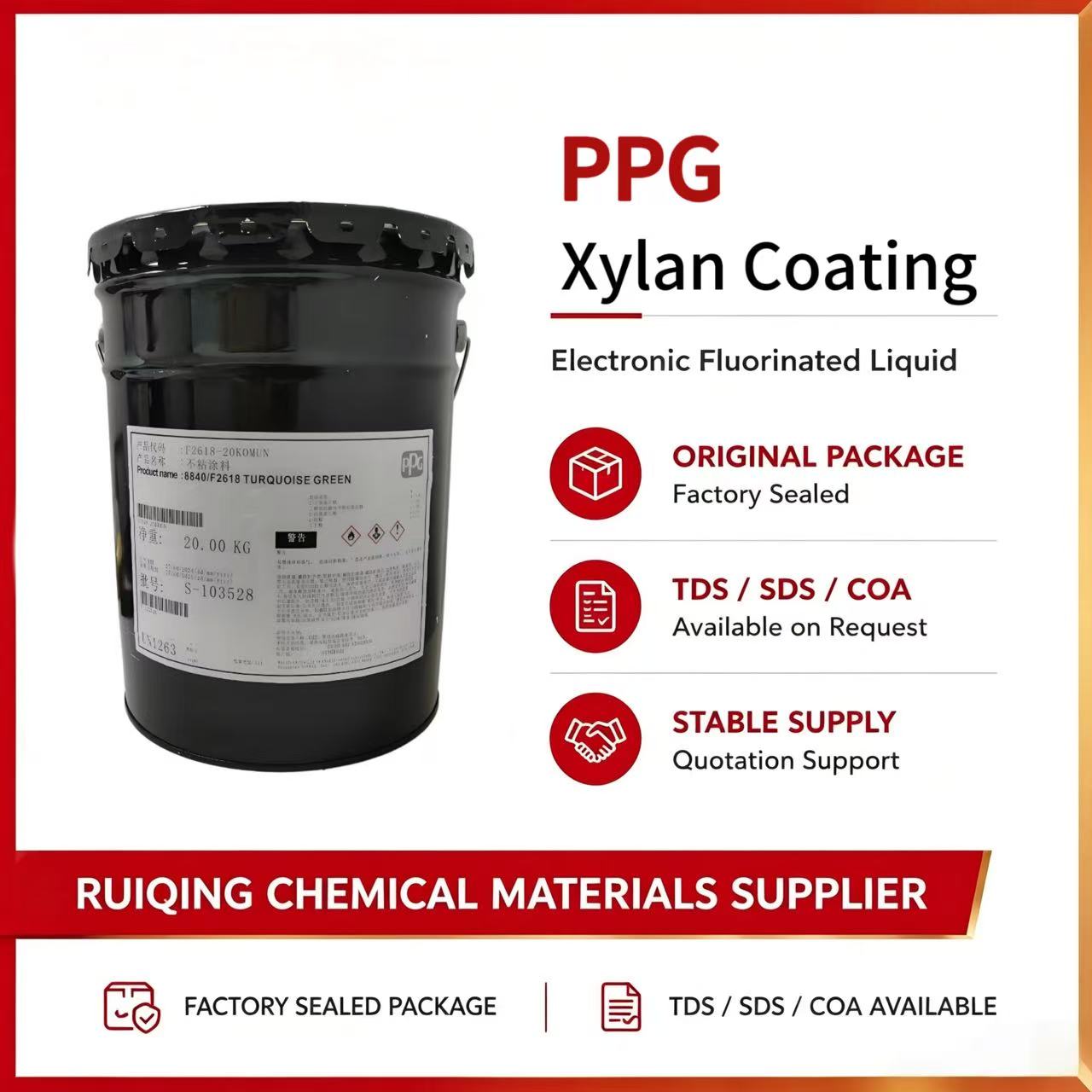

Xylan 1220 is a waterborne, FEP-based dry film lubricant coating from Whitford Corporation (now PPG). As an authorized distributor and trader, we supply genuine materials with full traceability and direct access to official technical documentation.
Unlike Xylan 1010 (solvent-based high PTFE lubricity), Xylan 1014 (hardness-focused), Xylan 1052 (extreme pressure with MoS₂), and Xylan 1088 (reinforced PTFE for high-speed wear), Xylan 1220 is the waterborne version of Xylan 1058, utilizing FEP (fluorinated ethylene propylene) instead of PTFE as the primary lubricant . The formulation uses a water/solvent hybrid carrier rather than a pure solvent, resulting in enhanced non-wetting and non-stick properties .
Xylan 1220 differs from the 1000 series in two key ways: 1) it uses FEP as the low-friction polymer instead of PTFE; and 2) it utilizes a water/solvent hybrid carrier instead of pure solvent. These changes provide enhanced non-wetting and non-stick characteristics, improved chemical resistance, and a cost savings of at least 10% compared to Xylan 1010 .
Xylan 1220 is specifically designed for general industrial applications, fasteners, and components requiring reliable corrosion protection, chemical resistance, and low friction in both corrosive and high-temperature environments . The coating is suitable for environments with high fat, high sugar, or protein content, making it ideal for food processing applications .
Key Features of Xylan 1220 Coating
-
Waterborne Formulation – Water/solvent hybrid carrier with low VOC content, compliant with RoHS environmental standards
-
FEP-Based Non-Stick – Uses FEP instead of PTFE, providing enhanced non-wetting and non-stick properties
-
Excellent Chemical Resistance – Resists strong acids, bases, solvents, and oxidizing media in harsh chemical environments
-
Wide Temperature Range – Continuous service from -250°C to 285°C (-418°F to 545°F), stable under thermal cycling
-
Cost-Effective – At least 10% cost savings compared to Xylan 1010
-
Versatile Application Methods – Can be applied by dip-spin or conventional air spray, adaptable to automated production lines
-
Good Adhesion – Requires primer (Xylan® 2) for optimal adhesion; achieves ASTM D3359 standard 4B–5B
-
Multiple Color Options – Available in various colors for identification and traceability
Typical Applications for Xylan 1220 Coating
| Industry | Typical Components & Considerations |
|---|---|
| General Industrial | Fasteners, general components – corrosion protection and low friction |
| Food Processing | Bakeware, molds, conveyor chains – non-stick properties reduce residue adhesion; suitable for high-sugar, high-fat, and protein environments |
| Chemical & Pharmaceutical | Reactor vessels, valves, pipe interiors – chemical resistance against aggressive reagents |
| Automotive | Fasteners, engine components – low friction operation and corrosion protection |
| Oil & Gas | Valves, pipe fittings – corrosion resistance and chemical stability in harsh environments |
Typical Properties of Xylan 1220 Coating
| Property | Typical Value | Test Method |
|---|---|---|
| Coefficient of Friction | Low and predictable | ASTM D1894 |
| Maximum Service Temperature (Continuous) | 285°C (545°F) | — |
| Maximum Service Temperature (Operating) | Up to 205°C (400°F) | — |
| Minimum Service Temperature | -250°C (-418°F) | — |
| Coating Thickness | 15 – 25 μm | — |
| Adhesion | 4B–5B (ASTM D3359) | ASTM D3359 |
| Salt Spray Resistance (with primer) | Good | ASTM B117 |
| Shelf Life | 18 months | — |
| Package Size | 20 kg pails | — |
Important Notes on Typical Data:
Values listed are typical and sourced from manufacturer data sheets. They do not constitute binding product specification.
Batch-to-batch deviations may exist. For critical applications, validate performance with batch-specific COA certificate.
Final performance depends on substrate preparation, application method, and curing conditions.
Manufacturer official TDS shall serve as definitive technical reference. Request the latest official TDS from our sales team.
Processing Guidelines for Xylan 1220 Coating
| Step | Process |
|---|---|
| Surface Preparation | Alkaline cleaning or acetone degreasing + grit-blast (Sa2.5 grade, Ra 3–6 μm) |
| Primer Application (Required) | Apply Xylan® 2 primer, dry film thickness 2.5–5 μm, cure at 380°C for 5–10 minutes |
| Topcoat Application | Apply Xylan 1220 by spray (conventional air spray or HVLP) or dip-spin coating |
| Curing | Room temperature flash-off followed by high-temperature sintering to complete curing |
| Storage | Store in original, sealed containers in a cool, dry place away from direct sunlight. Shelf life: 18 months |
Critical Processing Warnings:
Surface Preparation: Proper surface preparation is critical for adhesion. Ensure surfaces are clean, dry, and properly roughened to Sa2.5 grade, Ra 3–6 μm.
Primer Application: Xylan 1220 typically requires a primer (Xylan® 2) for optimal adhesion and maximum corrosion resistance . Primer dry film thickness should be 2.5–5 μm.
Curing: Flash-off at room temperature after coating application, then cure at high temperature to complete sintering. Cure time depends on part mass and oven characteristics. Always verify with test pieces.
Storage: Store in original, sealed containers in a cool, dry place away from direct sunlight.
Related Products
Explore Xylan Industrial Coatings – Browse all Xylan coating options
About Our Company – Learn more about our supply capabilities and quality assurance
Technical Documents for Xylan 1220 Coating
| Document Type | Description & Source |
|---|---|
| Manufacturer Official TDS | Complete physical, thermal, and mechanical properties of Xylan 1220 |
| Manufacturer Official SDS | GHS-compliant chemical safety documentation |
| Distributor Authorization Certificate | Proof of our authorized-distributor qualification, available upon request |
| COA (Certificate of Analysis) | Batch-specific quality certification |
Request any document above by:
Email: ruiqingchem@gmail.com
Online form: Our contact page
We reply within one working business day. Please clearly state product (Xylan 1220) and document type you require.
FAQ about Xylan 1220 Coating
Q1: What is Xylan 1220?
A: Xylan 1220 is a waterborne version of Xylan 1058 from Whitford (PPG). It uses FEP (fluorinated ethylene propylene) instead of PTFE as the low-friction polymer and features a water/solvent hybrid carrier for low VOC emissions and enhanced non-stick properties .
Q2: How does Xylan 1220 differ from Xylan 1010?
A: Xylan 1220 differs in two key ways: 1) it uses FEP as the low-friction polymer instead of PTFE; 2) it utilizes a water/solvent hybrid carrier instead of pure solvent. This results in enhanced non-wetting and non-stick characteristics and offers at least 10% cost savings compared to Xylan 1010 .
Q3: What is the operating temperature range of Xylan 1220?
A: Xylan 1220 operates continuously from -250°C to 285°C (-418°F to 545°F), with typical working temperature up to 205°C (400°F) .
Q4: Is Xylan 1220 environmentally friendly?
A: Yes, Xylan 1220 features a water/solvent hybrid carrier with low VOC content and is compliant with RoHS environmental standards .
Q5: Does Xylan 1220 require a primer?
A: Yes, Xylan 1220 typically requires a primer (Xylan® 2) for optimal adhesion and maximum corrosion protection. Primer dry film thickness should be 2.5–5 μm, cured at 380°C for 5–10 minutes .
Q6: What are the typical applications for Xylan 1220?
A: Typical applications include fasteners, general industrial components, industrial molds, chemical processing equipment, and food processing equipment (suitable for high-sugar, high-fat, and protein environments) .
Q7: What is the lead time for orders?
A: Regular orders ship within 7-10 working days after payment confirmation. Large-volume orders can be negotiated separately.
CTA (Call to Action)
Ready to order Xylan 1220?
To get a precise quotation and professional technical support, please share:
-
Required quantity (kg)
-
Destination port or delivery address
-
Target application (fasteners, molds, food processing, etc.)
-
Substrate type
-
Document requirement (TDS, SDS, COA, etc.)
Sample Policy:
-
Samples are for laboratory validation tests only, not for production use.
-
Buyer bears international sample-shipping freight.
-
If bulk-product performance deviates from sample reference, manufacturer official TDS serves as the authoritative benchmark.
Take action now:
-
📧 Email Us – ruiqingchem@gmail.com
-
📝 Send Inquiry – Use our quick inquiry form
-
💬 Live Chat – Click the bottom-right chat widget to speak directly with our team
After-Sales Support
| Service | Details |
|---|---|
| Quality Inspection Period | All quality-related claims must be submitted within 7 working days after delivery, supported by test data and photographic evidence. |
| Return / Exchange Policy | Confirmed product defects caused by our side trigger replacement or refund. Terms and conditions apply. |
| Logistics Damage | Report shipping damage directly to carrier immediately upon goods receipt. We assist with claim-document preparation. |
| Technical Support | Remote technical guidance available. On-site troubleshooting can be arranged upon special request. |
| Export Documentation | We supply commercial invoice, packing list, bill of lading, COA, and additional compliance certificates on request. |
Disclaimer
DISCLAIMER: All technical data is referenced from original manufacturer typical values for Xylan 1220. Our company acts as authorized distributor/trader rather than original manufacturer. Final performance depends on substrate preparation, application method, and curing conditions. Buyers shall independently validate suitability for individual applications. Our firm bears no liability for coating failure caused by improper application or usage. Always reference the latest manufacturer official TDS of Xylan 1220 as the definitive specification.
